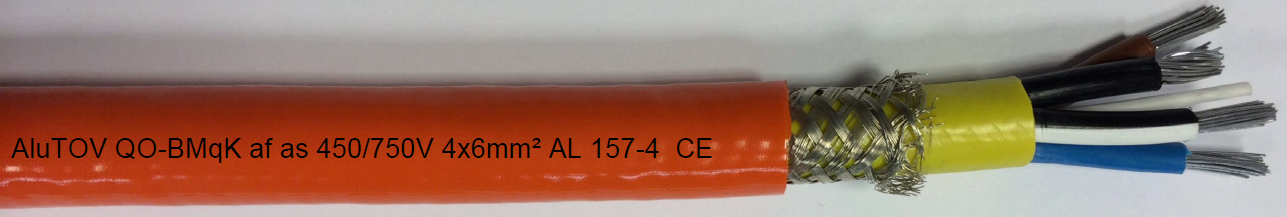

AluTOV
Download Datasheet PDF Data sheet of special cable with flexible aluminum conductor Type: QO-BMqK af as AL) 6mm², flexible aluminum... Lees meer
Beschrijving
Data sheet of special cable with flexible aluminum conductor
Type: QO-BMqK af as AL)
| 6mm², flexible aluminum conductor according ISO 6722-2 | ||||
| Properties | Nominal Value | Unit | ||
| Wire in conductor | 45 | pcs | ||
| Wire diameter | 0,4 | mm | ||
| Resistance at 20°C, max. | 5,23 | Ω/km | ||
| Aluminum weight | 16,3 | kg/km | ||
| Insulation of 6mm² acc. to EN 50363,1 | ||||
| Properties | Nominal Value | Unit | ||
| Material | EPR | – | ||
| Temperature range | -50 to +90 | °C | ||
| Wall thickness | 1,0 | mm | ||
| Outer diameter | 5,4 | mm | ||
| Color | Blue, Brown, Black, Black/White | – | ||
| Laying up of cores | ||||
| Properties | Nominal Value | Tolerance | Unit | |
| Lay length | 150 | -50 | mm | |
| Inner sheath | ||||
| Properties | Nominal Value | Unit | ||
| Material | PUR | – | ||
| Wall thickness | 0,8 | mm | ||
| Outer diameter | 14,8 | mm | ||
| Color | Natural | |||
| Braiding | ||||
| Properties | Nominal Value | Unit | ||
| Braiding of tinned copper wire, min 80% covering | ||||
| Wire diameter | 0,2 | mm | ||
| Gap between the elements |
<2 | mm | ||
| Cross section screen | 4 | mm² | ||
| Outer sheath acc. to EN 50363,10-2 | ||||
| Properties | Nominal Value | Unit | ||
| Material | PUR | – | ||
| Temperature range, fixed | -50 to +80 | °C | ||
| Wall thickness | 1,5 | mm | ||
| Outer diameter | 18,6 ± 1,0 | mm | ||
| Color | Orange | |||
| Marking | QO-BMqK af as 450/750V AL 4X6 mm² | |||
| Specific properties | ||||
| Properties | Nominal Value | Unit | ||
| Construction standard | KEMA 157-4 IAP | |||
| Voltage range | 450/750 | V | ||
| Test voltage, 5 min | 2500 | V | ||
| Halogen free | Pass IEC 60754-1 | – | ||
| Oil resistance | Good | – | ||
| Chemical resistance | Good | – | ||
| Total weight | 328 | Kg/km | ||
