(H)03 VH-H
DownloadDatasheet PDF (H)03 VH-H PVC twin cable APPLICATION For very low mechanical loads in households, kitchens, offices and for the... read more
Description

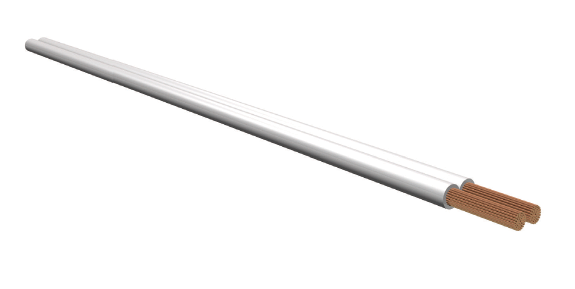

(H)03 VH-H
PVC twin cable
APPLICATION
For very low mechanical loads in households, kitchens, offices and for the connection of light electrical appliances. Not suitable for cooking and heating appliances.
| Structure | |
| Conductor | Flexible copper conductor according to VDE 0295 class 6 |
| Insulation sheath | According to VDE 0207 part 4 type Y12 |
| Technical data | |
| Nominal voltage | 300 V |
| Test voltage | 2000 V |
| Maximum permissible operating voltage in rotary-pha-se and single-phase alternating current systems | Uo/U 330/330 V |
| Direct current systems | Uo/U 495/495 V |
| Product description | Cu weight | Outer Ø (mm) | Weight (kg/km) |
| (H)03VH-H 2×0.75 PVC twin cable | 14.4 | 3.2 x 6.4 | 36 |
SPECIAL FEATURES
Sheath colour
White, black brown and gold
