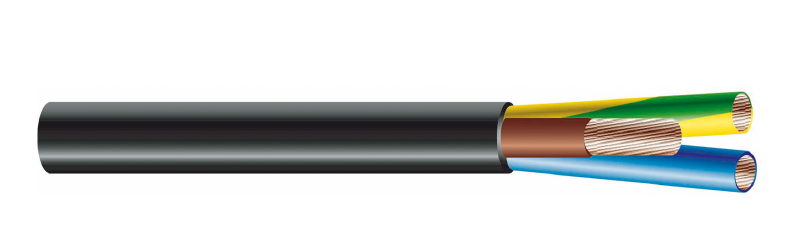

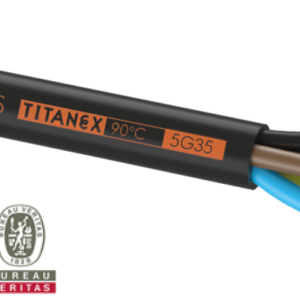

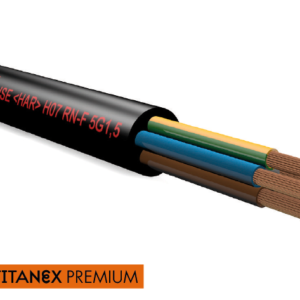

H07RN-F
Download Datasheet PDF H07RN-F CPR Eca ENERGY TRANSMISSION RUBBER INSULATED CABLES WITH SPECIAL SHEATH SUITED FOR FIXED LAY, MOBILE LINK... Lees meer
Beschrijving
H07RN-F
CPR Eca
ENERGY TRANSMISSION RUBBER INSULATED CABLES WITH SPECIAL SHEATH SUITED FOR FIXED LAY, MOBILE LINK AND MECHANICAL SERVICE HEAVY TOO
(Accordingly to the standards BT 2014/35/UE- 2011/65/EU (RoHS 3))
Standards
CEI EN 50525-2-21 CEI 20-107/2-21 CEI 20-19/4 (CENELEC HD 22.4 S4) BS 7919:2001 NF C 32-102-4 VDE 0282-4 EN 50575:2014 + EN 50575/A1:2016 EN 60811 403/504/505/506 EN 50396
Class 5 flexible copper conductor.
Elastomeric mixture Insulation in EI4 quality.
Polychloroprene sheath, EM2.
Nominal voltage U0: 450 V
Nominal voltage U: 750 V
Test voltage: 2500 V
Maximun voltage Um: 1000V for fixed and protected installation
Maximun operating temperature: +60°C (+90°C)
Maximun short circuit temperature: +200°C (+250°C)
Min. operating temperature (without mechanical shocks): -40°C (-50°C)
Minimum installation and use temperature: -25°C (-40°C)
Common features
This cable is suitable for dry, humid or wet environments in open air, in workshops with an explosive athmosphere. When used for connections they’re subjected to medium/severe mechanical stress. It can be used even in fixed laying like floors and temporary construction site set offs.CPR Compliant 305/2011 EU
Special Features in addition to the features of the H07RN_F:
– Insulation tested up to +90°C. Includes the characteristics of the H07BN4-F cables and the H07BB-F cables. Low Temperature Resistant (-40°C dynamic
– 50°C static).
– AD8 water resistance 10 bar such as the H07RN8-F.
– OZONE RESISTANT (Test A) and (Test B). UV Resistant. AG2 Shock Resistant. Excellent resistance to mineral oils, fats, AF3, and atmospheric agents AK2.Resistance to alternate bending of sections ≤ 4 mm2: for at least 100000 cycles
Employment
Minimum bending radius per D cable diameter (in mm):
Fixed installation D<8=3D D<12=3D D<20=4D D>20=4D
Free Movement D<8=4D D<12=4D D<20=5D D>20=6D
Maximum pulling stress:
15 N/mm2 section of copper dynamic applications, for fixed 50 N/mm2
Packing
100mt. rings in thermoplastic film or drums to agree.
Core colours
Single core: black
Two cores: blue-brown
Three cores: Brown – Black – Gray (o Y/G, Blue and Brown)
Four cores: blue-brown-black-gray (or Y/G instead blue)
Five cores: Y/G-blue-brown-black-gray (black no Y/G)
Multicores: black with numbers and Y/G
Sheath colour
Black
Ink marking
Eca-year-IEMMEQU<HAR>H07RN-F-form x sect-iwo
Note
Current carrying capacities for unipolar cables are calculated on 3 spanned cables.
Current carrying capacities for cables are calculated on 3-4 spanned cables.
Special Bending Radius:
At the entrance to a portable device or a mobile device mechanical stress with D <8 = 6D D <12 = 6D D <20 = 6D D> 20 = 8D
Winding repeated D <8 = 6D D <12 = 6D D <20 = 6D D> 20 = 8D
Diverted to pulley D <8 = 8D D <12 = 8D D <20 = 8D D> 20 = 8D
HARMONIZED
Cores number | Cross section | Approx conductor diameter | Insulation medium thickness | Approx external production diameter |
Approx cable weight | Electric resistance at 20°C | Mobile service Current carrying capacities at 60°C conductor temp |
Current rating for fixed installation at 85°C of conductor temp.open air |
(N°) | (mm²) | (mm) | (mm) | (mm) | (kg/km) | (Ohm/km) | (A) | (A) |
Single core | ||||||||
1x | 1.5 | 1.6 | 0.8 | 5.9 | 50 | 13.3 | 16 | 23 |
1x | 2.5 | 2 | 0.9 | 6.50 | 65 | 7.98 | 25 | 32 |
1x | 4 | 2.6 | 1.0 | 7.4 | 89 | 4.95 | 30 | 43 |
1x | 6 | 3.4 | 1.0 | 8.10 | 115 | 3.30 | 38 | 56 |
1x | 10 | 4.4 | 1.2 | 10.4 | 190 | 1.91 | 53 | 77 |
1x | 16 | 5.7 | 1.2 | 11.62 | 259 | 1.21 | 71 | 102 |
1x | 25 | 6.9 | 1.4 | 13.74 | 375 | 0.780 | 94 | 136 |
1x | 35 | 8.1 | 1.4 | 15.35 | 492 | 0.554 | 117 | 168 |
1x | 50 | 9.8 | 1.6 | 17.68 | 675 | 0.386 | 148 | 203 |
1x | 70 | 11.6 | 1.6 | 20.00 | 908 | 0.272 | 185 | 254 |
1x | 95 | 13.3 | 1.8 | 22.12 | 1171 | 0.206 | 222 | 299 |
1x | 120 | 15.1 | 1.8 | 24.54 | 1445 | 0.161 | 260 | 363 |
1x | 150 | 16.8 | 2.0 | 26.87 | 1783 | 0.129 | 300 | 416 |
1x | 185 | 18.6 | 2.2 | 28.89 | 2125 | 0.106 | 341 | 475 |
1x | 240 | 21.4 | 2.4 | 32.62 | 2733 | 0.0801 | 407 | 559 |
1x | 300 | 23.9 | 2.6 | 36.46 | 3348 | 0.0641 | 468 | 637 |
1x | 400 | 27.5 | 2.8 | 39.6 | 4800 | 0.0486 | 553 | 722 |
1x | 500 | 35.0 | 3.0 | 45.5 | 5800 | 0.0384 | 620 | 833 |
1x | 630 | 39.0 | 3.0 | 49.5 | 6800 | 0.0287 | 742 | 888 |
Two cores | ||||||||
2x | 1 | 1.3 | 0.8 | 8.4 | 90 | 19.5 | 10 | 18 |
2x | 1.5 | 1.6 | 0.8 | 9.10 | 109 | 13.3 | 18 | 23 |
2x | 2.5 | 2 | 0.9 | 10.80 | 158 | 7.98 | 27 | 32 |
2x | 4 | 2.6 | 1.0 | 12.40 | 217 | 4.95 | 34 | 43 |
2x | 6 | 3.4 | 1.0 | 13.80 | 282 | 3.30 | 43 | 56 |
2x | 10 | 4.4 | 1.2 | 19.37 | 539 | 1.91 | 60 | 77 |
2x | 16 | 5.7 | 1.2 | 21.76 | 722 | 1.21 | 79 | 102 |
2x | 25 | 6.9 | 1.4 | 25.93 | 1043 | 0.780 | 105 | 136 |
2x | 35 | 8.1 | 1.4 | 28.77 | 1169 | 0.554 | 129 | 168 |
2x | 50 | 9.8 | 1.6 | 33.1 | 1606 | 0.386 | 150 | 203 |
2x | 70 | 11.6 | 1.6 | 37.8 | 2140 | 0.272 | 185 | 254 |
2x | 95 | 13.3 | 1.8 | 42.4 | 2806 | 0.272 | 216 | 299 |
Three cores | ||||||||
3G | 1 | 1.3 | 0.8 | 9.07 | 110 | 19.5 | 10 | 18 |
3G | 1.5 | 1.6 | 0.8 | 10.18 | 134 | 13.3 | 16 | 23 |
3G | 2.5 | 2.0 | 0.9 | 11.58 | 196 | 7.98 | 25 | 32 |
3G | 4 | 2.6 | 1.0 | 13.3 | 271 | 4.95 | 29 | 43 |
3G | 6 | 3.4 | 1.0 | 14.78 | 355 | 3.30 | 36 | 56 |
3G | 10 | 4.4 | 1.2 | 20.73 | 674 | 1.91 | 51 | 77 |
3G | 16 | 5.7 | 1.2 | 23.26 | 913 | 1.21 | 67 | 102 |
3G | 25 | 6.9 | 1.4 | 27.69 | 1324 | 0.780 | 89 | 136 |
3G | 35 | 8.1 | 1.4 | 30.95 | 1754 | 0.554 | 110 | 168 |
3G | 50 | 9.8 | 1.6 | 35.80 | 2409 | 0.386 | 138 | 203 |
3G | 70 | 11.6 | 1.6 | 40.45 | 3211 | 0.272 | 172 | 254 |
3G | 95 | 13.3 | 1.8 | 45.08 | 4210 | 0.206 | 204 | 299 |
3G | 120 | 15.1 | 1.8 | 49.93 | 5205 | 0.161 | 238 | 363 |
3G | 150 | 16.8 | 2.0 | 54.78 | 6389 | 0.129 | 273 | 416 |
3G | 185 | 18.6 | 2.2 | 58.99 | 7591 | 0.106 | 309 | 475 |
3G | 240 | 21.4 | 2.4 | 67.85 | 9944 | 0.0801 | 365 | 559 |
3G | 300 | 23.9 | 2.6 | 75.56 | 10133 | 0.0641 | 450 | 637 |
Four cores | ||||||||
4G | 1 | 1.3 | 0.8 | 10.0 | 136 | 19.5 | 10 | 16 |
4G | 1.5 | 1.6 | 0.8 | 10.76 | 166 | 13.3 | 16 | 21 |
4G | 2.5 | 2.0 | 0.9 | 12.73 | 241 | 7.98 | 20 | 29 |
4G | 4 | 2.6 | 1.0 | 14.63 | 336 | 4.95 | 30 | 38 |
4G | 6 | 3.4 | 1.0 | 16.44 | 449 | 3.30 | 37 | 50 |
4G | 10 | 4.4 | 1.2 | 22.57 | 833 | 1.91 | 52 | 68 |
4G | 16 | 5.7 | 1.2 | 25.36 | 1138 | 1.21 | 69 | 92 |
4G | 25 | 6.9 | 1.4 | 30.75 | 1714 | 0.780 | 92 | 122 |
4G | 35 | 8.1 | 1.4 | 34.23 | 2204 | 0.554 | 114 | 150 |
4G | 50 | 9.8 | 1.6 | 39.56 | 3029 | 0.386 | 143 | 182 |
4G | 70 | 11.6 | 1.6 | 44.89 | 4121 | 0.272 | 178 | 232 |
4G | 95 | 13.3 | 1.8 | 50.36 | 5361 | 0.206 | 210 | 281 |
4G | 120 | 15.1 | 1.8 | 55.33 | 6546 | 0.161 | 246 | 325 |
4G | 150 | 16.8 | 2.0 | 60.87 | 8095 | 0.129 | 282 | 373 |
4G | 185 | 18.6 | 2.2 | 65.70 | 9652 | 0.106 | 319 | 425 |
4G | 240 | 21.4 | 2.4 | 75.70 | 12614 | 0.0801 | 377 | 500 |
4G | 300 | 23.9 | 2.6 | 86.33 | 13890 | 0.0641 | 460 | 588 |
Five cores | ||||||||
5G | 1 | 1.3 | 0.8 | 11.0 | 168 | 19.5 | 10 | 16 |
5G | 1.5 | 1.6 | 0.8 | 11.80 | 206 | 13.3 | 16 | 21 |
5G | 2.5 | 2.0 | 0.9 | 13.96 | 297 | 7.98 | 20 | 29 |
5G | 4 | 2.6 | 1.0 | 16.25 | 422 | 4.95 | 30 | 38 |
5G | 6 | 3.4 | 1.0 | 18.07 | 567 | 3.30 | 38 | 50 |
5G | 10 | 4.4 | 1.2 | 24.75 | 1010 | 1.91 | 54 | 68 |
5G | 16 | 5.7 | 1.2 | 28.01 | 1400 | 1.21 | 71 | 92 |
5G | 25 | 6.9 | 1.4 | 33.57 | 2096 | 0.780 | 94 | 122 |
5G | 35 | 8.1 | 1.4 | 39.2 | 2697 | 0.554 | 114 | 150 |
5G | 50 | 9.8 | 1.6 | 45.4 | 3740 | 0.386 | 142 | 182 |
5G | 70 | 11.6 | 1.6 | 48.0 | 5033 | 0.272 | 178 | 232 |
5G | 95 | 13.3 | 1.8 | 53.22 | 6271 | 0.206 | 210 | 281 |
Multicores | ||||||||
7G | 1.5 | 1.6 | 0.8 | 15.3 | 315 | 13.3 | 16 | 21 |
7G | 2.5 | 2.0 | 0.9 | 17.9 | 445 | 7.98 | 20 | 29 |
7G | 4 | 2.6 | 1.0 | 19.64 | 618 | 4.95 | 25 | 38 |
10G | 1.5 | 1.6 | 0.8 | 17.9 | 420 | 13.3 | 16 | 21 |
12G | 1.5 | 1.6 | 0.8 | 18.4 | 493 | 13.3 | 16 | 21 |
12G | 2.5 | 2.0 | 0.9 | 22.17 | 702 | 7.98 | 20 | 29 |
12G | 4 | 2.6 | 1.0 | 25.77 | 1004 | 4.95 | 25 | 38 |
18G | 1.5 | 1.6 | 0.8 | 22.00 | 705 | 13.3 | 16 | 21 |
18G | 2.5 | 2.0 | 0.9 | 25.95 | 1020 | 7.98 | 20 | 29 |
19G | 1.5 | 1.6 | 0.8 | 22.79 | 710 | 13.3 | 16 | 21 |
19G | 2.5 | 2.0 | 0.9 | 26.25 | 1030 | 7.98 | 20 | 29 |
24G | 1.5 | 1.6 | 0.8 | 25.04 | 898 | 13.3 | 16 | 21 |
24G | 2.5 | 2.0 | 0.9 | 29.37 | 1312 | 7.98 | 20 | 29 |
36G | 1.5 | 1.6 | 0.8 | 29.3 | 1246 | 13.3 | 16 | 21 |
36G | 2.5 | 2.0 | 0.9 | 35.0 | 1851 | 7.98 | 20 | 29 |
Note
Current carrying capacities for unipolar cables are calculated on 3 spanned cables.
Current carrying capacities for cables are calculated on 3-4 spanned cables.
Special Bending Radius:
At the entrance to a portable device or a mobile device mechanical stress with D <8 = 6D D <12 = 6D D <20 = 6D D> 20 = 8D
Winding repeated D <8 = 6D D <12 = 6D D <20 = 6D D> 20 = 8D
Diverted to pulley D <8 = 8D D <12 = 8D D <20 = 8D D> 20 = 8D
