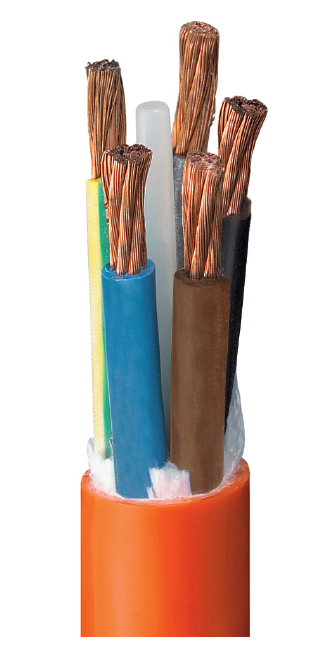

PURWIL, orange, flex, EPR/PUR
Flexible LV Cables
520_2_0
CH-S1BQ-F
Robust and flexible polyurethane cable (EPR/-PUR)
Application
- Apparatus and mechanical engineering
- Outdoors
- Construction industry
- Construction zones
- Chemical industry
- For indoor and outdoor applications
- Apparatus engineering
- Large construction zones
- Inner sheath
- Connection of motors
The bright orange PURWIL cable is the right choice for connecting machines and equipment under extreme conditions or outdoors.Thanks to the large number of alternative core cross-sec-tions and core configurations, it is suitable for a wide variety of purposes up to 750 V nominal voltage.The finely stranded, flexible cable is extremely resistant to wear and breakage and to acid and oil.These properties predestine it for daily, harsh use at construction zones, in indus-try or in mechanical engineering.The colour, labelling and alternative cable configurations can be individually tailored.The outer sheath and core insulation for PURWIL PUR/PUR are made of halogen-free polyurethane (PUR).
Materials and components
- Cu conductor bare class 5 (IEC 60228), finely stranded
- Core insulation made of EPR
- Core colours per CENELEC HD 308 S2
- Cores stranded in layers
- Outer sheath made of polyurethane (PUR)
Jacket colour
- Orange similar to RAL 2004
- Other colours on request
Functions
- Abrasion resistant
- Flexible
- Good oil and petrol resistance
- Halogen-free
Environmental conditions
- Good resistance at high and low temperatures
- Hydrolysis- and microbe-resistant
- Ozone- and weather-resistant
- Saltwater-resistant
Performance
Mechanical properties
- Max.tensile load 20N/mm2 Cu cross-section
- Min.bending radius 10 x D static, 15 x D dynamic (D = cable Ø)
Nominal voltage
- Nominal voltage [AC]: Uo / U 600 V / 1,000 V
Test voltage
- Testvoltage[AC]:3,500V,50Hz,5min.
Temperature range
- Mobile: -5°C… +90°C
- Fixed laying: -40°C… +90°C
- Capable of carrying current for short time up to 110°C
Standards
- SEV TP20B/3C
- IEC 60754-1 Halogen-free
- IEC 60754-2 Corrosivity of fumes
Technical data
Cross-section mm² | Part no. | Conductor code | Ø D approx. mm | Cu-number kg/km | Weight kg/km |
4G25 | 521316 | 3LPE1 | 29.5 | 960.0 | 1366 |
5G25 | 521317 | 3LNPE | 33.0 | 1200.0 | 1667 |
4G35 | 521318 | 3LPE1 | 33.5 | 1344.0 | 1840 |
5G35 | 521319 | 3LNPE | 37.5 | 1680.0 | 2310 |
4G50 | 521320 | 3LPE1 | 39.4 | 1920.0 | 2570 |
5G50 | 521321 | 3LNPE | 43.8 | 2400.0 | 3210 |
4G70 | 521322 | 3LPE1 | 44.2 | 2688.0 | 3590 |
5G70 | 521323 | 3LNPE | 49.5 | 3360.0 | 4480 |
4G95 | 521324 | 3LPE1 | 51.2 | 3648.0 | 4850 |
5G95 | 521325 | 3LNPE | 57.2 | 4560.0 | 6060 |
4G120 | 521326 | 3LPE1 | 57.0 | 4608.0 | 6000 |
1 2LNPE only for definite applications
Bigger cable constructions on request, until 5×150 mm².
