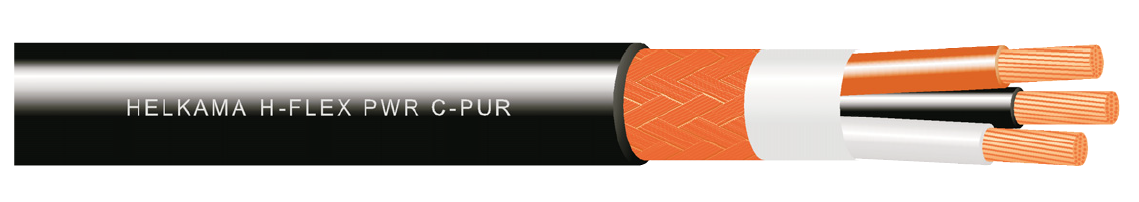

H-FLEX PWR C-PUR 0,6/1kV

DownloadDatasheet PDF H-FLEX PWR C-PUR 0,6/1kV Screened power and control cable for flexible use Application: The cable is intended for... Lees meer

Beschrijving

Download
Datasheet PDF

H-FLEX PWR C-PUR 0,6/1kV

Screened power and control cable for flexible use

Application: The cable is intended for flexible, portable, movable applications. Applications such as ship to
shore cable, outdoor cranes and various industrial applications.It is suitable for flexible applications in machineries,
machine tools, robot technics and can be submersed into water. The cable has good mechanical characteristics,
high tensile strength, is abrasion resistant and resistant to UV, chemicals, oil and other fluids. The cable can be
coiled back and forth. Suitable to dragchain use. Mud resistant according to NEK606.

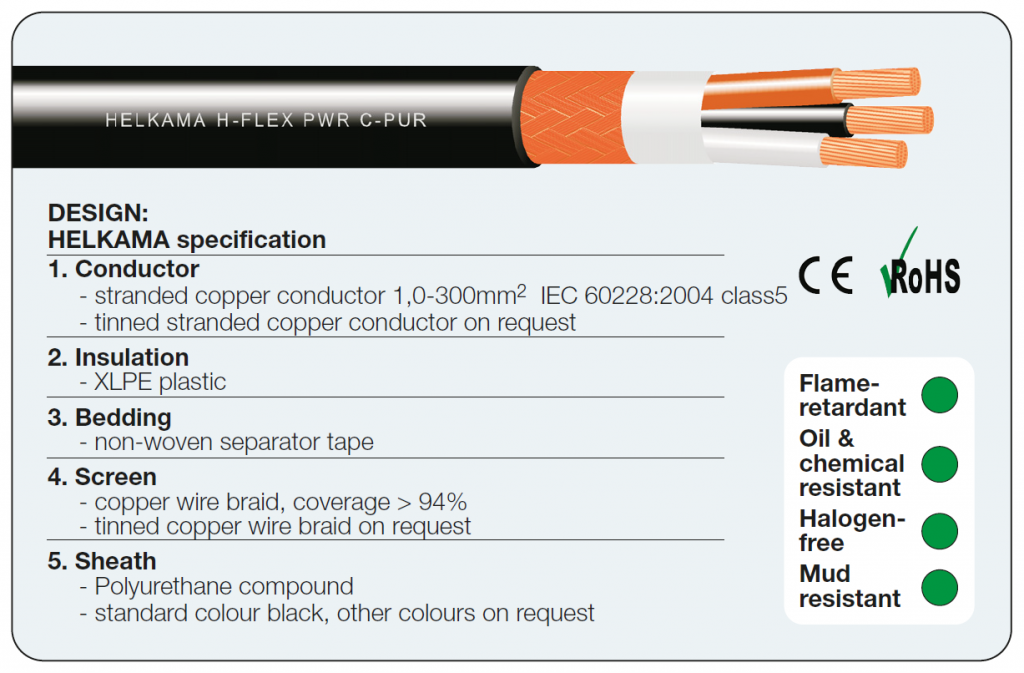

Main characteristics
Rated voltage AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV   (if voltage to earth does not exceed 0,9kV)
Maximum conductor temperature 90 °C
Flame-retardant IEC 60332-1-2 -test for single insulated wire
Halogen-free IEC 60754 series
Mechanical flex test EN 50396 -conditions according to EN 50525
Oil resistancy EN 60811-404  -conditions according to EN 50363-10-2
Operating temperature -60 – +80 °C fixed use
-35 – +80 °C flexible use
Mechanical Min. bending radius
– fixed: 4 x d < 25 mm < 6 x d
– mobile: 8 x d < 25 mm < 10 x d
– s-shape deflection: 15 x d < 25 mm < 20 x d
Max. tensile load without strength members
15 N/mm2 of phases copper cross section
Core identification Color code for 1…4 (5 if PE conductor) core cable,
number code for 5…37 core cable.
Marine type approvals DNV-GL, BV and ABS



Part number
Normal		 G – type Number of conductors & cross-section
n x mm2		 Cross-section of screen
mm2		 Nominal outer diameter
mm		 Approximate weight
kg/km		 Current Rating
A
5400105010 5400105011 1×1,0 3,0 6,5 60 17
5400107010 5400107011 1×1,5 3,0 6,5 65 22
5400108010 5400108011 1×2,5 3,0 7,0 80 30
5400109010 5400109011 1×4 3,1 7,5 95 39
5400110010 5400110011 1×6 3,1 8,0 115 50
5400111010 5400111011 1×10 3,6 9,5 170 71
5400112010 5400112011 1×16 4,1 10,5 230 94
5400113010 5400113011 1×25 4,8 12,5 325 123
5400114010 5400114011 1×35 5,4 13,5 425 153
5400115010 5400115011 1×50 6,3 15,5 580 196
5400116010 5400116011 1×70 7,3 17,5 790 240
5400117010 5400117011 1×95 8,2 19,5 1015 284
5400118010 5400118011 1×120 9,2 21,5 1260 331
5400119010 5400119011 1×150 10,2 24,5 1580 381
5400120010 5400120011 1×185 11,4 26,5 1920 429
5400121010 5400121011 1×240 12,7 30,0 2530 507
5400122010 5400122011 1×300 14,2 33,5 3120 582
5400105020 – 2×1,0 3,6 9,5 100 14
5400107020 – 2×1,5 3,7 10,0 110 19
5400108020 – 2×2,5 4,2 11,0 140 26
5400109020 – 2×4 4,8 12,0 175 33
5400110020 – 2×6 5,4 13,5 265 43
5400111020 – 2×10 6,3 16,0 390 60
5400112020 – 2×16 7,4 18,0 535 80
5400113020 – 2×25 9,2 22,0 800 105
5400114020 – 2×35 10,4 24,0 1035 130
5400115020 – 2×50 12,2 28,0 1425 167
5400116020 – 2×70 14,2 32,5 1960 204
5400105030 5400105031 3×1,0 3,6 10,0 115 12
5400107030 5400107031 3×1,5 4,1 10,5 130 15
5400108030 5400108031 3×2,5 4,5 11,5 170 21
5400109030 5400109031 3×4 5,3 13,0 225 27
5400110030 5400110031 3×6 5,8 14,0 315 35
5400111030 5400111031 3×10 6,8 16,5 475 50
5400112030 5400112031 3×16 8,0 19,0 675 66
5400113030 5400113031 3×25 9,9 24,0 1020 86
5400114030 5400114031 3×35 11,3 25,5 1330 107
5400115030 5400115031 3×50 13,2 30,0 1830 137
5400116030 5400116031 3×70 15,3 34,5 2550 168
5400117030 5400117031 3×95 17,4 38,5 3275 199
5400118030 5400118031 3×120 19,5 43,0 4115 232
5400119030 5400119031 3×150 21,5 49,0 5185 267
5400120030 5400120031 3×185 24,1 54,0 6335 300
5400121030 5400121031 3×240 26,9 61,0 8385 355
5400122030 5400122031 3×300 30,2 68,0 10320 407
5400105040 5400105041 4×1,0 4,1 10,5 135 12
5400107040 5400107041 4×1,5 4,4 11,0 155 15
5400108040 5400108041 4×2,5 5,2 12,5 215 21
5400109040 5400109041 4×4 5,7 14,0 275 27
5400110040 5400110041 4×6 6,4 15,5 385 35
5400111040 5400111041 4×10 7,8 18,0 585 50
5400112040 5400112041 4×16 8,9 21,0 845 66
5400113040 5400113041 4×25 11,0 26,5 1300 86
5400114040 5400114041 4×35 12,6 28,5 1710 107
5400115040 5400115041 4×50 14,6 33,0 2370 137
5400116040 5400116041 4×70 16,9 38,5 3295 168
5400117040 5400117041 4×95 19,5 42,5 4260 199
5400118040 5400118041 4×120 21,5 48,0 5365 232
5400119040 5400119041 4×150 24,3 54,5 6770 267
5400120040 5400120041 4×185 26,7 60,0 8220 300
5400121040 5400121041 4×240 30,6 68,0 10960 355
5400105050 5400105051 5×1,0 4,4 11,0 160 10
5400107050 5400107051 5×1,5 4,9 12,0 190 13
5400108050 5400108051 5×2,5 5,5 13,5 255 17
5400109050 5400109051 5×4 6,3 15,0 335 23
5400110050 5400110051 5×6 7,1 16,5 465 29
5400111050 5400111051 5×10 8,4 20,0 710 41
5400112050 5400112051 5×16 9,9 23,0 990 55
5400113050 5400113051 5×25 12,2 29,0 1515 71
5400114050 5400114051 5×35 14,1 31,5 2090 89
5400115050 5400115051 5×50 16,4 36,5 2915 114
5400116050 5400116051 5×70 18,8 42,5 4110 139
5400117050 5400117051 5×95 21,4 47,5 5395 165
5400118050 5400118051 5×120 24,1 53,0 6890 192
5400119050 5400119051 5×150 26,8 60,5 8795 221
5400105060 5400105061 6×1,0 4,7 12,0 200 9
5400107060 5400107061 6×1,5 5,4 13,0 215 11
5400108060 5400108061 6×2,5 6,1 14,5 295 15
5400105070 5400105071 7×1,0 4,9 12,0 195 9
5400107070 5400107071 7×1,5 5,4 13,0 230 11
5400108070 5400108071 7×2,5 6,1 14,5 320 15
5400109070 5400109071 7×4 7,8 16,5 435 20
5400110070 5400110071 7×6 7,9 18,5 580 26
5400111070 5400111071 7×10 9,3 22,0 920 37
5400112070 5400112071 7×16 10,9 25,5 1340 49
5400113070 5400113071 7×25 13,6 31,5 2080 64
5400105100 5400105101 10×1,0 6,5 15,5 275 8
5400107100 5400107101 10×1,5 7,2 16,5 320 10
5400108100 5400108101 10×2,5 8,2 18,5 455 14
5400105120 5400105121 12×1,0 6,8 16,0 305 7
5400107120 5400107121 12×1,5 7,5 17,0 355 10
5400108120 5400108121 12×2,5 8,5 19,5 510 13
5400105140 5400105141 14×1,0 7,1 16,5 340 7
5400107140 5400107141 14×1,5 7,9 18,0 400 9
5400108140 5400108141 14×2,5 9,0 20,0 575 12
5400105160 5400105161 16×1,0 7,8 17,0 375 7
5400107160 5400107161 16×1,5 8,4 19,0 445 9
5400108160 5400108161 16×2,5 9,5 21,5 655 12
5400105190 5400105191 19×1,0 8,0 18,0 425 6
5400107190 5400107191 19×1,5 8,9 19,5 500 8
5400108190 5400108191 19×2,5 10,1 22,5 745 11
5400105240 5400105241 24×1,0 9,7 21,5 545 6
5400107240 5400107241 24×1,5 10,7 23,5 640 8
5400108240 5400108241 24×2,5 12,1 26,5 940 10
5400105270 5400105271 27×1,0 9,9 22,0 590 5
5400107270 5400107271 27×1,5 11,0 24,0 705 7
5400108270 5400108271 27×2,5 12,5 27,5 1035 10
5400105300 5400105301 30×1,0 10,3 22,5 640 5
5400107300 5400107301 30×1,5 11,4 25,0 765 7
5400108300 5400108301 30×2,5 13,0 28,0 1130 9
5400105370 5400105371 37×1,0 11,2 24,5 755 5
5400107370 5400107371 37×1,5 12,4 26,5 910 7
5400108370 5400108371 37×2,5 14,1 30,5 1365 9
– 5430113031 3×25+3×6 13,0 24,5 1240 86
– 5430114031 3×35+3×6 14,8 26,5 1535 107
– 5430115031 3×50+3×10 17,2 30,5 2130 137
– 5430116031 3×70+3×16 20,0 35,5 2985 168
– 5430117031 3×95+3×16 22,5 39,0 3710 199
– 5430118031 3×120+3×25 34,8 44,0 4930 232
– 5430119031 3×150+3×25 39,1 50,0 5960 267
– 5430120031 3×185+3×35 43,1 55,0 7400 300
– 5430121031 3×240+3×50 48,7 62,0 9745 355
– 5430122031 3×300+3×50 53,2 69,5 11760 407
