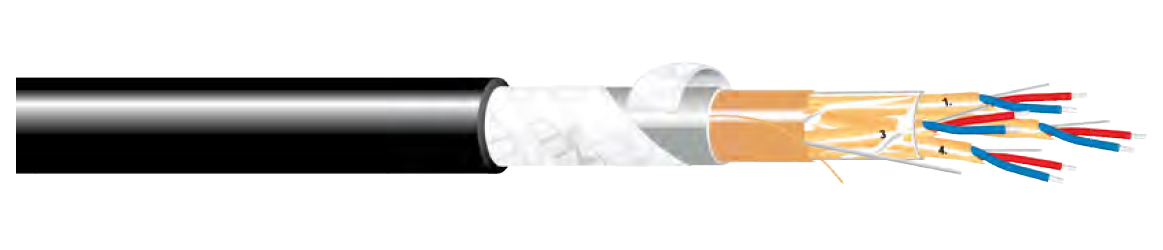

KJAAM-HF GM
Cable for instrumentation, process control, computer and sound reproduction systems.
Designed for the transmission of digital and low-level analog signals, providing excellent protection against electromagnetic interference. Armouring with galvanized steel tapes.
| Electrical properties | Pair DC resistance (+20°C) max. 81 ohm/km Nominal pair capacitance (800 Hz) 100 nF/km Insulation resistance min. 2 Gohm x km |
| Conductor | Annealed, tinned copper 0,5 mm2/7×0,3 mm |
| Insulation | Solid PE, nominal wall thickness 0,3 mm |
| Twisting | Two cores blue/red and a ground conductor 7×0,3 mm stranded together with a short lay |
| Pair shielding | Aluminium foil covered with a numbered tape and a polyester tape |
| Stranding | Pairs stranded together and covered with a polyester tape |
| Shielding | Plastic coated aluminium tape over a ground conductor 7×0,3 mm |
| Inner sheath | Flame retardant, halogen-free polyolefine plastic, light grey |
| Armouring | Two 0,2 mm zinc-coated steel tapes |
| Sheath | Polyolefine plastic, SHF1, black |
| Rated voltage | 75 V |
| Identification | Lot number, cable type, cable size, production month, year, manufacturer’s name and meter marking printed on the sheath |
| Fire properties | IEC 60332-1, IEC 60332-3-22 |
| Physical properties | Installation temperature -15 °C to 50 °C During operation -40 °C to 70 °C |
| Conductors | Nominal outer Ø mm |
Nominal weight kg/km |
Standard delivery length m |
| 4 x (2+1) x 0,5 + 0,5 | 13,2 | 257 | 1000 |
| 8 x (2+1) x 0,5 + 0,5 | 16,3 | 380 | 1000 |
| 12 x (2+1) x 0,5 + 0,5 | 19,1 | 527 | 1000 |
| 24 x (2+1) x 0,5 + 0,5 | 25,2 | 868 | 1000 |
