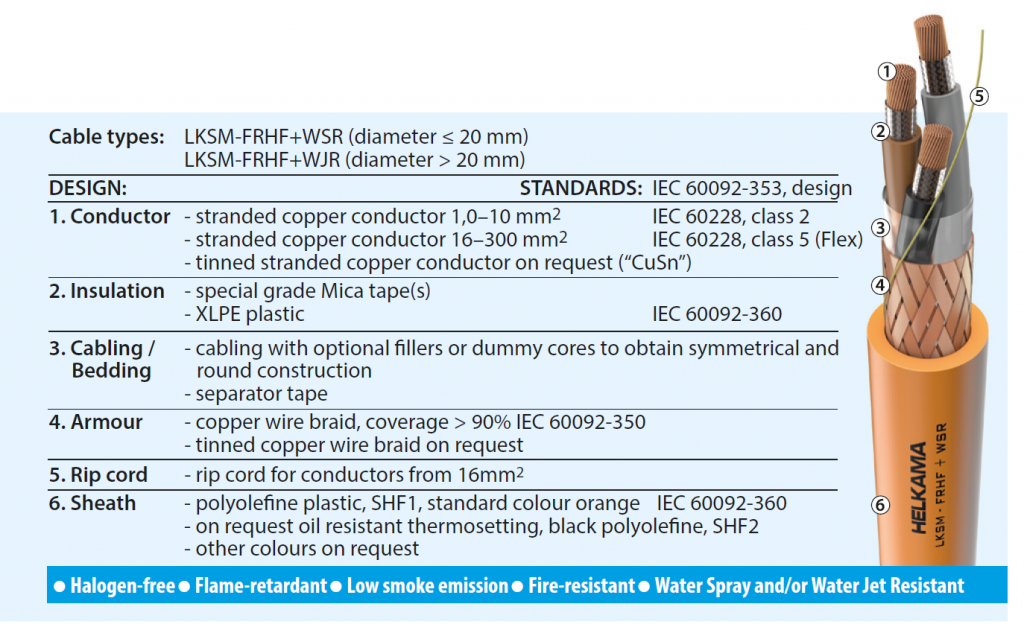

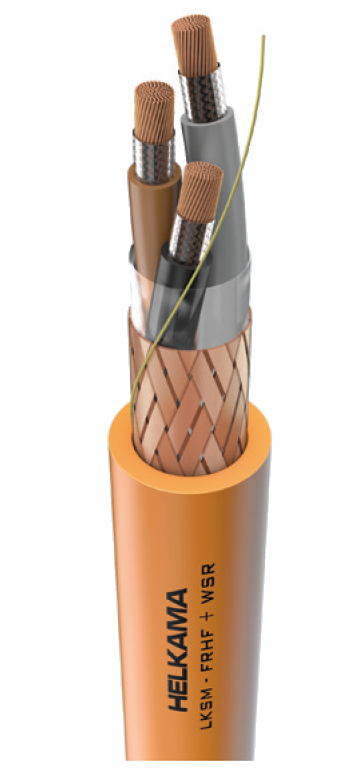

LKSM-FRHF+WSR/WJR
Fire Resistant + Water Spray Resistant and/or Water Jet Resistant, armoured power and control cable 0,6/1kV
Application: For fixed installation in most areas and on open deck in ships and off shore units. Especially intended to ensure the availability of all critical transportation-, comfort- and safety systems, i.e. to meet the concepts of; Orderly Evacuation (3 hours burning time) and Safe Return to Port (Fire test with simultaneous Water Spray / Water Jet + mechanical shocks) to simulate the fi refi ghting conditions.
If the cable is exposed to direct sunlight, we recommend cable with black outer sheath or a protective covering.
| Main characteristics | |
| Rated voltage | AC 0,6/1kV (1,2kV) DC 0,9/1,5kV (if voltage to earth does not exceed 0,9kV) |
| Halogen-free | IEC 60754 series |
| Flame-retardant | IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A |
| Smoke emission | IEC 61034 series |
| Fire- and Water Spray Resistant | IEC 60331-2 (180 min test) + EN 50200:2015 Annex E (diameter ≤ 20 mm) |
| Fire- and Water Jet Resistant | IEC 60331-1 (180 min test) + BS 8491:2008 (diameter > 20 mm) |
| Oil resistance (only SHF2) | IEC 60811-404 conditions according to 60092-360/SHF2 |
| Recommended minimum bending radius (fixed installation): 4 x outer diameter of the cable | |
| Temperature rating: | Maximum conductor temperature + 90 °C Fixed installation -40 °C to +80 °C Minimum recommended installation temperature -15 °C |
| For details see general information section | |
| Part number Normal |
G-type |
Number of conductors & cross-section n x mm2 |
Cross-section of armour mm2 |
Nominal outer diameter mm |
Approximate weight kg/km |
Current Rating A at +45°C |
Min. bending radius fixed installation mm |
| 628541 | – | 1×1,0 | 3,0 | 6,5 | 75 | 18 | 40 |
| 628568 | – | 1×1,5 | 3,0 | 7,0 | 85 | 23 | 40 |
| 628570 | – | 1×2,5 | 3,1 | 7,5 | 95 | 30 | 45 |
| 628572 | – | 1×4 | 3,1 | 8,0 | 115 | 40 | 50 |
| 628574 | – | 1×6 | 3,1 | 8,5 | 145 | 52 | 50 |
| 628576 | – | 1×10 | 3,5 | 10,0 | 205 | 72 | 60 |
| 629060 | 627058 | 1×16 Flex | 4,0 | 11,0 | 265 | 94 | 65 |
| 629061 | 627060 | 1×25 Flex | 4,9 | 13,0 | 380 | 123 | 80 |
| 629062 | 627062 | 1×35 Flex | 5,5 | 14,0 | 480 | 153 | 85 |
| 629063 | 627064 | 1×50 Flex | 8,7 | 16,5 | 670 | 196 | 100 |
| 629064 | 627066 | 1×70 Flex | 10,0 | 18,5 | 905 | 240 | 110 |
| 629065 | 627068 | 1×95 Flex | 11,5 | 20,0 | 1140 | 284 | 120 |
| 629066 | 627070 | 1×120 Flex | 12,3 | 22,5 | 1415 | 331 | 135 |
| 629067 | 627072 | 1×150 Flex | 14,7 | 25,0 | 1760 | 381 | 150 |
| 629068 | 627074 | 1×185 Flex | 15,2 | 27,5 | 2095 | 429 | 165 |
| 629069 | 627076 | 1×240 Flex | 18,2 | 30,5 | 2725 | 507 | 180 |
| 629070 | 627078 | 1×300 Flex | 18,7 | 34,0 | 3365 | 582 | 205 |
| 628542 | – | 2×1,0 | 3,5 | 10,0 | 155 | 15 | 60 |
| 628602 | – | 2×1,5 | 3,8 | 11,0 | 175 | 20 | 65 |
| 628604 | – | 2×2,5 | 4,3 | 12,0 | 205 | 26 | 70 |
| 628606 | – | 2×4 | 4,9 | 13,0 | 280 | 34 | 80 |
| 628608 | – | 2×6 | 5,4 | 14,5 | 405 | 44 | 85 |
| 628610 | – | 2×10 | 8,7 | 17,0 | 600 | 61 | 100 |
| 629071 | – | 2×16 Flex | 10,0 | 19,5 | 770 | 80 | 115 |
| 629072 | – | 2×25 Flex | 14,5 | 24,0 | 1215 | 105 | 145 |
| 629073 | – | 2×35 Flex | 14,7 | 26,0 | 1460 | 130 | 155 |
| 629074 | – | 2×50 Flex | 18,1 | 30,0 | 1950 | 167 | 180 |
| 629075 | – | 2×70 Flex | 18,7 | 34,0 | 2645 | 204 | 205 |
| 629076 | – | 2×95 Flex | 22,2 | 37,5 | 3315 | 241 | 225 |
| 628543 | 628544 | 3×1,0 | 4,1 | 10,5 | 155 | 13 | 65 |
| 628622 | 628623 | 3×1,5 | 4,1 | 11,5 | 180 | 16 | 70 |
| 628624 | 628625 | 3×2,5 | 4,6 | 12,5 | 220 | 21 | 75 |
| 628626 | 628627 | 3×4 | 5,2 | 14,0 | 295 | 28 | 85 |
| 628628 | 628629 | 3×6 | 5,8 | 15,0 | 420 | 36 | 90 |
| 628630 | 628631 | 3×10 | 9,3 | 18,0 | 625 | 50 | 110 |
| 629082 | 629083 | 3×16 Flex | 10,7 | 20,5 | 905 | 66 | 125 |
| 629084 | 629085 | 3×25 Flex | 14,6 | 25,5 | 1385 | 86 | 155 |
| 629086 | 629087 | 3×35 Flex | 15,0 | 27,5 | 1710 | 107 | 165 |
| 629088 | 629089 | 3×50 Flex | 18,3 | 32,0 | 2355 | 137 | 195 |
| 629090 | 629091 | 3×70 Flex | 22,0 | 36,5 | 3190 | 168 | 220 |
| 629092 | 629093 | 3×95 Flex | 22,8 | 40,5 | 4025 | 199 | 240 |
| 629094 | 629095 | 3×120 Flex | 37,8 | 45,5 | 5170 | 232 | 270 |
| 629096 | 629097 | 3×150 Flex | 39,3 | 51,5 | 6415 | 267 | 310 |
| 629098 | 629099 | 3×185 Flex | 43,4 | 56,5 | 7770 | 300 | 340 |
| 629100 | 629101 | 3×240 Flex | 49,1 | 63,5 | 10135 | 355 | 380 |
| 628545 | 628546 | 4×1,0 | 4,1 | 11,5 | 180 | 13 | 70 |
| 628642 | 628643 | 4×1,5 | 4,5 | 12,5 | 215 | 16 | 75 |
| 628644 | 628645 | 4×2,5 | 5,0 | 14,0 | 275 | 21 | 85 |
| 628646 | 628647 | 4×4 | 5,8 | 15,0 | 360 | 28 | 90 |
| 628648 | 628649 | 4×6 | 8,8 | 17,0 | 535 | 36 | 100 |
| 628650 | 628651 | 4×10 | 10,3 | 20,0 | 760 | 50 | 120 |
| 629104 | 629105 | 4×16 Flex | 11,9 | 23,0 | 1040 | 66 | 135 |
| 629106 | 629107 | 4×25 Flex | 14,8 | 28,5 | 1550 | 86 | 170 |
| 629108 | 629109 | 4×35 Flex | 18,1 | 30,5 | 1995 | 107 | 185 |
| 629110 | 629111 | 4×50 Flex | 19,5 | 35,5 | 2715 | 137 | 210 |
| 629112 | 629113 | 4×70 Flex | 22,4 | 40,5 | 3690 | 168 | 245 |
| 629114 | 629115 | 4×95 Flex | 37,8 | 45,5 | 4860 | 199 | 270 |
| 629116 | 629117 | 4×120 Flex | 39,3 | 50,5 | 6020 | 232 | 300 |
| 628547 | 628548 | 5×1,0 | 4,5 | 12,5 | 210 | 10 | 75 |
| 628662 | 628663 | 5×1,5 | 5,0 | 14,0 | 255 | 13 | 85 |
| 628664 | 628665 | 5×2,5 | 5,6 | 15,0 | 320 | 17 | 90 |
| 628705 | 628706 | 5×4 | 8,6 | 17,0 | 455 | 23 | 100 |
| 628707 | 628708 | 5×6 | 9,7 | 18,5 | 620 | 30 | 110 |
| 628709 | 628710 | 5×10 | 11,5 | 21,5 | 895 | 42 | 130 |
| 629126 | 629127 | 5×16 Flex | 13,2 | 25,0 | 1230 | 55 | 150 |
| 629128 | 629129 | 5×25 Flex | 18,1 | 31,0 | 1870 | 71 | 185 |
| 629130 | 629131 | 5×35 Flex | 18,6 | 33,5 | 2415 | 89 | 200 |
| 629132 | 629133 | 5×50 Flex | 21,6 | 39,0 | 3325 | 114 | 235 |
| 628549 | 628550 | 7×1,0 | 4,9 | 13,5 | 260 | 9 | 80 |
| 628551 | 628552 | 10×1,0 | 8,7 | 17,5 | 380 | 8 | 105 |
| 628553 | 628554 | 12×1,0 | 9,0 | 18,0 | 425 | 8 | 105 |
| 628555 | 628556 | 14×1,0 | 11,4 | 18,5 | 490 | 7 | 110 |
| 628557 | 628558 | 16×1,0 | 11,4 | 20,0 | 545 | 7 | 120 |
| 628559 | 628560 | 19×1,0 | 11,4 | 21,0 | 605 | 7 | 125 |
| 628561 | 628562 | 24×1,0 | 12,5 | 24,5 | 755 | 6 | 145 |
| 628563 | 628564 | 27×1,0 | 12,8 | 25,0 | 815 | 6 | 150 |
| 628564 | – | 30×1,0 | 13,3 | 26,0 | 885 | 5 | 155 |
| 628565 | 628566 | 37×1,0 | 14,4 | 28,0 | 1050 | 5 | 170 |
| 628666 | 628667 | 7×1,5 | 5,4 | 15,0 | 310 | 12 | 90 |
| 628723 | 628724 | 10×1,5 | 9,6 | 19,0 | 460 | 11 | 115 |
| 628670 | 628671 | 12×1,5 | 9,9 | 20,0 | 525 | 10 | 120 |
| 628727 | 628728 | 14×1,5 | 11,4 | 21,0 | 595 | 10 | 125 |
| 628731 | 628732 | 16×1,5 | 11,5 | 22,0 | 650 | 9 | 130 |
| 628674 | 628675 | 19×1,5 | 11,7 | 23,0 | 730 | 9 | 135 |
| 628678 | 628679 | 24×1,5 | 13,9 | 27,0 | 940 | 8 | 165 |
| 628682 | 628683 | 27×1,5 | 14,1 | 27,5 | 1015 | 8 | 165 |
| – | – | 30×1,5 | 14,7 | 28,5 | 1105 | 7 | 170 |
| 628684 | 628685 | 37×1,5 | 16,0 | 31,0 | 1315 | 7 | 185 |
| 628668 | 628669 | 7×2,5 | 8,5 | 16,5 | 430 | 16 | 100 |
| 628725 | 628726 | 10×2,5 | 11,5 | 21,0 | 600 | 14 | 125 |
| 628672 | 628673 | 12×2,6 | 11,5 | 21,5 | 675 | 13 | 130 |
| 628729 | 628730 | 14×2,5 | 11,8 | 23,0 | 780 | 13 | 140 |
| 628733 | 628734 | 16×2,5 | 12,5 | 24,5 | 865 | 12 | 145 |
| 628676 | 628677 | 19×2,5 | 13,2 | 25,5 | 980 | 11 | 155 |
| 628680 | 628681 | 24×2,5 | 15,7 | 30,0 | 1240 | 10 | 180 |
| 628686 | 628687 | 27×2,5 | 16,1 | 30,5 | 1350 | 10 | 185 |
| – | – | 30×2,5 | 16,7 | 32,0 | 1470 | 10 | 190 |
| 628688 | 628689 | 37×2,5 | 18,1 | 34,5 | 1775 | 9 | 205 |
G-type is with yellow/green earth conductor and marking on sheath is, for example, 3G1,5
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
