RFE-FRHF(i)+WSR/WJR 250V
DownloadDatasheet PDF RFE-FRHF(i)+WSR/WJR 250V Fire Resistant + Water Spray Resistant and/or Water Jet Resistant armoured and individually screened instrumentation and... read more
Description
RFE-FRHF(i)+WSR/WJR 250V

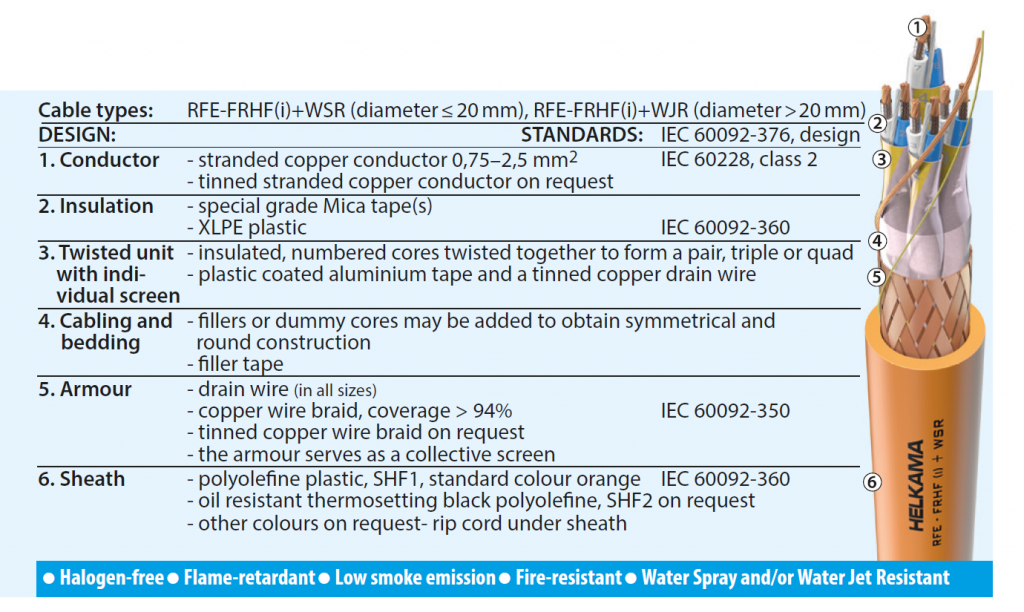

Fire Resistant + Water Spray Resistant and/or Water Jet Resistant armoured and individually screened instrumentation and communication cable 250V
Application: For fixed installation in most areas and on open deck in ships and off shore units. Especially intended to ensure the availability of all critical transportation-, comfort- and safety systems, i.e. to meet the concepts of; Orderly Evacuation (3 hours burning time) and Safe Return to Port (Fire test with simultaneous Water Spray / Water Jet + mechanical shocks) to simulate the firefighting conditions.
If the cable is exposed to direct sunlight, we recommend cable with black outer sheath or a protective covering.
| Main characteristics | |
| Rated voltage | 150/250V (300V) |
| Halogen-free | IEC 60754 series |
| Flame-retardant | IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A |
| Smoke emission | |
| Fire- and Water Spray Resistant | IEC 60331-2 (180 min test) + EN 50200:2015 Annex E (diameter ≤ 20 mm) |
| Fire- and Water Jet Resistant | IEC 60331-1 (180 min test) + BS 8491:2008 (diameter > 20 mm) |
| Oil resistance (only SHF2) | IEC 60811-404 conditions according to 60092-360/SHF2 |
| For details see general information section | |
| Electrical data: | 0,75mm2 | 1,5mm2 | Unit |
| Loop resistance of pair, max. / +20°C | 52 | 24,4 | ohm/km |
| Pair capacitance, nom. / 1 KHz | 55 | 75 | nF/km |
| Loop inductance, nom. | 0,6 | 0,7 | mH/km |
| Insulation resistance / +20°C | ≥1500 | ≥1500 | Mohm/km |
Recommended minimum bending radius (fixed installation): 4 x outer diameter of the cable
| Temperature rating: | Maximum conductor temperature + 90 °C Fixed installation -40 °C to +80 °C Minimum recommended installation temperature -15 °C |
| For details see general information section | |
| Part number | Number of conductors & cross-section n x mm2 |
Nominal outer diameter mm |
Approximate weight kg/km |
Min. bending radius fixed installation mm |
| 620546 | 1x2x0,75 | 9,5 | 120 | 55 |
| 620548 | 2x2x0,75 Quad | 11,0 | 170 | 65 |
| 620550 | 2x2x0,75 | 14,0 | 225 | 85 |
| 620552 | 4x2x0,75 | 16,5 | 345 | 100 |
| 620554 | 7x2x0,75 | 20,0 | 495 | 120 |
| 620556 | 8x2x0,75 | 21,0 | 545 | 125 |
| 620558 | 10x2x0,75 | 24,5 | 675 | 145 |
| 620560 | 12x2x0,75 | 25,5 | 770 | 155 |
| 620562 | 14x2x0,75 | 27,0 | 865 | 165 |
| 620563 | 16x2x0,75 | 29,0 | 970 | 175 |
| 620564 | 19x2x0,75 | 31,0 | 1105 | 185 |
| 620566 | 24x2x0,75 | 35,0 | 1370 | 210 |
| 620603 | 1x2x1,5 | 10,5 | 160 | 65 |
| 620604 | 2x2x1,5 Quad | 12,0 | 225 | 70 |
| 620605 | 2x2x1,5 | 16,0 | 335 | 95 |
| 620607 | 4x2x1,5 | 19,0 | 470 | 115 |
| 620609 | 7x2x1,5 | 22,5 | 710 | 135 |
| 620611 | 8x2x1,5 | 24,0 | 795 | 145 |
| 620513 | 10x2x1,5 | 27,5 | 970 | 165 |
| 620615 | 12x2x1,5 | 29,0 | 1130 | 175 |
| 620617 | 14x2x1,5 | 31,0 | 1275 | 185 |
| 620619 | 16x2x1,5 | 33,0 | 1430 | 200 |
| 620621 | 19x2x1,5 | 35,5 | 1640 | 215 |
Other sizes on request.
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
