Description

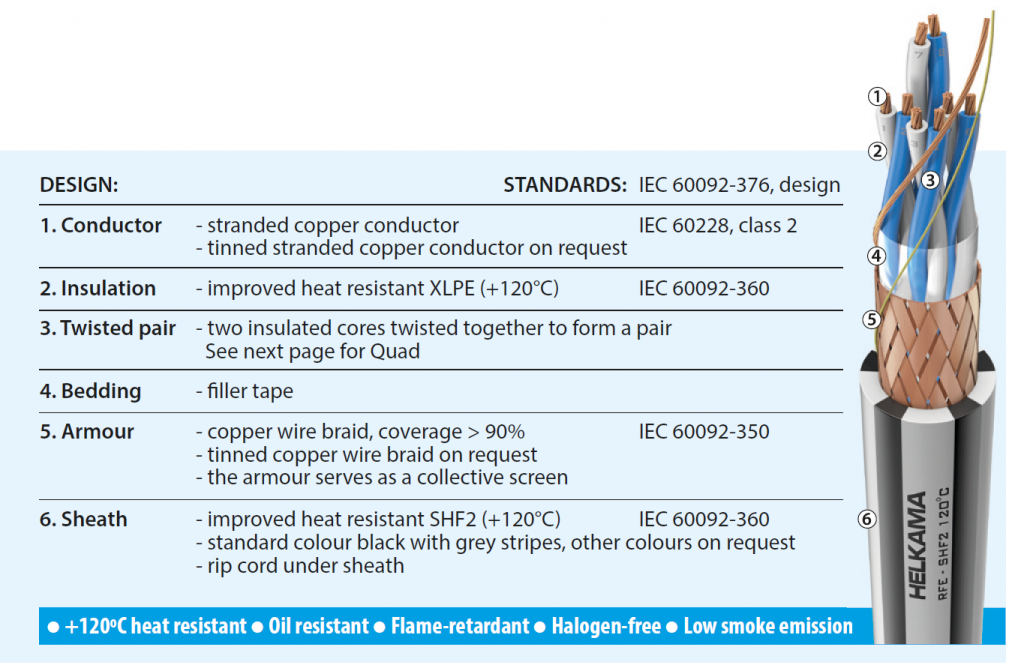

RFE-SHF2 120°C 250V
Armoured and individually screened instrumentation and communication cable 250V
Application: For fixed installation in most areas and on open deck in ships or on oil rigs and various industrial use. Excellent resistance against weathering, ozone, UV-rays, Oil / Diesel oil. Typical Marine, Oil, Gas and Petrochemical applications are for example Ship Engine rooms, power plants and/or other areas where ambient temperature may exceed +80°C, which is the limit for traditional IEC 60092-cables.
| Main characteristics | |
| Rated voltage | 150/250V (300V) |
| Oil resistance | IEC 60811-404 conditions according to 60092-360 |
| Halogen-free | IEC 60754 series |
| Flame-retardant | IEC 60332-1-2 Test for single insulated wire and cable IEC 60332-3-22 Test for bunched wires and cables, category A |
| Smoke emission | IEC 61034 series |
| Temperature rating: | Fixed installation: -40 ºC to +120 ºC Occasionally moved: -20 ºC to +120 ºC Max. conductor temperature: +120 ºC |
| Electrical data: | 0,5mm2 | 0,75mm2 | 1,5mm2 | Unit |
| Loop resistance of pair, max. / +20°C | 80 | 52 | 24,4 | ohm/km |
| Pair capacitance, nom. / 1 KHz | 55 | 50 | 60 | nF/km |
| Loop inductance, nom. | 0,6 | 0,6 | 0,7 | mH/km |
| Insulation resistance / +20°C | ≥1500 | ≥1500 | ≥1500 | Mohm/km |
For details see general information section
| Part number | Number of conductors & cross-section n x mm2 |
Nominal outer diameter mm |
Approximate weight kg/km |
Min. bending radius fixed installation mm |
| 4120362 | 1x2x0,5 | 6,5 | 80 | 40 |
| 4120364 | 2x2x0,5 Quad | 7,5 | 95 | 45 |
| 4120363 | 2x2x0,5 | 9,5 | 115 | 55 |
| 4120366 | 4x2x0,5 | 10,5 | 150 | 65 |
| 4120368 | 7x2x0,5 | 12,5 | 215 | 75 |
| 4120369 | 8x2x0,5 | 13,5 | 235 | 80 |
| 4120370 | 10x2x0,5 | 15,5 | 310 | 90 |
| 4120371 | 12x2x0,5 | 16,0 | 340 | 95 |
| 4120372 | 14x2x0,5 | 17,0 | 395 | 100 |
| 4120373 | 16x2x0,5 | 18,0 | 425 | 110 |
| 4120374 | 19x2x0,5 | 19,0 | 480 | 115 |
| 4120376 | 24x2x0,5 | 21,5 | 585 | 130 |
| 4120382 | 1x2x0,75 | 7,5 | 90 | 45 |
| 4120384 | 2x2x0,75 Quad | 8,5 | 120 | 50 |
| 4120383 | 2x2x0,75 | 11,0 | 145 | 65 |
| 4120386 | 4x2x0,75 | 12,5 | 200 | 75 |
| 4120388 | 7x2x0,75 | 15,0 | 315 | 90 |
| 4120389 | 8x2x0,75 | 16,0 | 345 | 95 |
| 4120390 | 10x2x0,75 | 18,0 | 415 | 110 |
| 4120391 | 12x2x0,75 | 19,0 | 465 | 115 |
| 4120392 | 14x2x0,75 | 20,0 | 535 | 120 |
| 4120393 | 16x2x0,75 | 21,5 | 585 | 130 |
| 4120394 | 19x2x0,75 | 23,0 | 675 | 140 |
| 4120396 | 24x2x0,75 | 25,5 | 815 | 155 |
| 4120398 | 32x2x0,75 | 29,0 | 1040 | 175 |
| 4120490 | 1x2x1,5 | 10,0 | 135 | 60 |
| 4120491 | 2x2x1,5 Quad | 10,5 | 185 | 65 |
| 4120492 | 2x2x1,5 | 14,5 | 230 | 85 |
| 4120493 | 4x2x1,5 | 17,0 | 370 | 100 |
| 4120494 | 7x2x1,5 | 20,0 | 540 | 120 |
| 4120495 | 8x2x1,5 | 21,5 | 620 | 130 |
| 4120496 | 10x2x1,5 | 24,5 | 750 | 150 |
| 4120497 | 12x2x1,5 | 26,0 | 850 | 155 |
| 4120498 | 14x2x1,5 | 27,5 | 955 | 165 |
| 4120499 | 19x2x1,5 | 31,5 | 1230 | 190 |
| 4120500 | 24x2x1,5 | 35,0 | 1525 | 210 |
Other sizes on request.
Part number for oil resistant SHF2 cable:
4 + code from above table ➞ 4xxxxx
