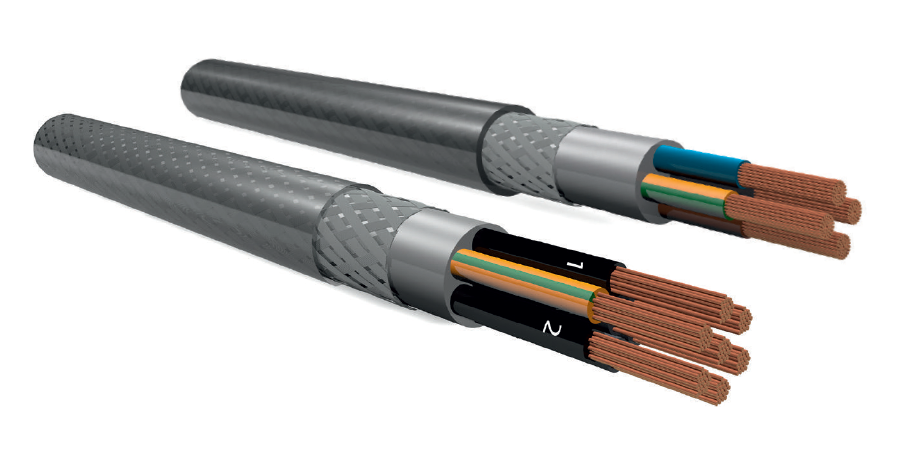

YSLY-CY -OZ/-JZ/-OB/-JB
PVC screened control cable
APPLICATION
For measurement and control purposes requiring a high level of electromagnetic compatibility (EMC). The cable is largely oil and chemical resistant. For use in dry and damp rooms but not outdoors.

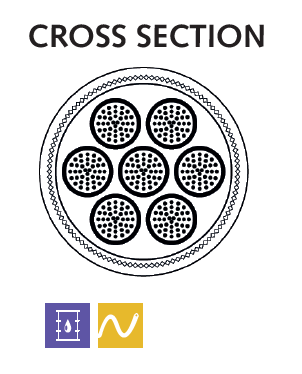

| Structure | |
| Design structure based on DIN VDE 0250 | |
| Conductor | Copper conductor, bare, flexible, conductor structure according to VDE 0295 class 5 |
| Core identification | OZ – black cores with imprinted digits, no green and yellow protective conductor JZ – black cores with imprinted digits, green and yellow protective conductor OB – coloured cores without green and yellow protective conductor JB – coloured cores with green and yellow protective conductor |
| Stranding method | Cores concentrically stranded in layers, with optimum lay lengths |
| Inner sheath | Sheath material made from special PVC compound |
| Shield | Mesh of tin-plated copper wires, optical coverage approx. 85% |
| Outer sheath | Sheath material made from special PVC compound |
| Technical data | |
| Nominal voltage | 300 V/500 V |
| Test voltage | 2000 V |
| Conductor resistance | At 20°C according to VDE 0295 class 5 and IEC 228 class 5 for flexible conductors |
| Conductor temperature | Max. +70°C during operation, + 150°C in the case of a short circuit |
| Insulation resistance | Min. 20 MOhm x km |
| Min. bending radius | Up to 20 mm Ø: 15 x cable diameter > 20 mm Ø: 20 x cable diameter |
| Temperature range | Moving -5°C to +70°C |
| Temperature range | Fixed installation -40°C to +80°C |
| Flammability | Test method B according to VDE 0472 part 804 and IEC 332-1 |
| PVC properties | Self extinguishing and flame retardant |
| Product description | Cu weight | Outer Ø (mm) | Weight (kg/km) |
| YSLY-CY-OZ 2×0.75 Screened – grey | 46 | 7,5 | 92 |
| YSLY-CY-JZ 3×0.75 Screened – grey | 58 | 7,9 | 102 |
| YSLY-CY-JZ 4×0.75 Screened – grey | 64 | 8,5 | 118 |
| YSLY-CY-JZ 5×0.75 Screened – grey | 78 | 09 | 133 |
| YSLY-CY-JZ 7×0.75 Screened – grey | 102 | 10,5 | 190 |
| YSLY-CY-JZ 12×0.75 Screened – grey | 177 | 13 | 304 |
| YSLY-CY-JZ 18×0.75 Screened – grey | 243 | 14,7 | 374 |
| YSLY-CY-JZ 25×0.75 Screened – grey | 307 | 17,7 | 504 |
| YSLY-CY-JZ 34×0.75 Screened – grey | 413 | 18,5 | 822 |
| YSLY-CY-JZ 42×0.75 Screened – grey | 445 | 20 | 1002 |
| YSLY-CY-JZ 50×0.75 Screened – grey | 535 | 24,6 | 1080 |
| YSLY-CY-JZ 61×0.75 Screened – grey | 620 | 26,3 | 1190 |
| YSLY-CY-OZ 2×1 Screened – grey | 56 | 8,2 | 110 |
| YSLY-CY-JZ 3×1 Screened – grey | 83 | 8,5 | 123 |
| YSLY-CY-JZ 4×1 Screened – grey | 78 | 9,5 | 148 |
| YSLY-CY-JZ 5×1 Screened – grey | 89 | 10,2 | 172 |
| YSLY-CY-JZ 7×1 Screened – grey | 113 | 11,6 | 221 |
| YSLY-CY-JZ 12×1 Screened – grey | 165 | 14,5 | 367 |
| YSLY-CY-JZ 18×1 Screened – grey | 286 | 17,4 | 506 |
| YSLY-CY-JZ 25×1 Screened – grey | 389 | 18,1 | 672 |
| YSLY-CY-JZ 34×1 Screened – grey | 505 | 20,2 | 890 |
| YSLY-CY-JZ 42×1 Screened – grey | 550,7 | 21,5 | 1110 |
| YSLY-CY-JZ 50×1 Screened – grey | 662 | 28 | 1300 |
| YSLY-CY-JZ 61×1 Screened – grey | 775 | 29,2 | 1362 |
| YSLY-CY-OZ 2×1.5 Screened – grey | 65 | 8,6 | 140 |
| YSLY-CY-JZ 3×1.5 Screened – grey | 83 | 9,6 | 162 |
| YSLY-CY-JZ 4×1.5 Screened – grey | 100 | 9,9 | 178 |
| YSLY-CY-JZ 5×1.5 Screened – grey | 125 | 10,6 | 211 |
| YSLY-CY-JZ 7×1.5 Screened – grey | 196 | 13,3 | 310 |
| YSLY-CY-JZ 12×1.5 Screened – grey | 280 | 16 | 454 |
| YSLY-CY-JZ 18×1.5 Screened – grey | 389 | 19,6 | 628 |
| YSLY-CY-JZ 25×1.5 Screened – grey | 535 | 22,6 | 794 |
| YSLY-CY-JZ 34×1.5 Screened – grey | 666,6 | 25,9 | 1142 |
| YSLY-CY-JZ 42×1.5 Screened – grey | 788,8 | 28,9 | 1332 |
| YSLY-CY-JZ 50×1.5 Screened – grey | 915 | 30 | 1662 |
| YSLY-CY-JZ 61×1.5 Screened – grey | 1196,9 | 33 | 1785 |
| YSLY-CY-JZ 3×2.5 Screened – grey | 146 | 11,5 | 214 |
| YSLY-CY-JZ 4×2.5 Screened – grey | 167 | 12,3 | 270 |
| YSLY-CY-JZ 5×2.5 Screened – grey | 200 | 14,2 | 342 |
| YSLY-CY-JZ 7×2.5 Screened – grey | 288 | 14,9 | 426 |
| YSLY-CY-JZ 12×2.5 Screened – grey | 473 | 19,5 | 710 |
| YSLY-CY-JZ 18×2.5 Screened – grey | 573 | 23,2 | 990 |
| YSLY-CY-JZ 4×4 Screened – grey | 237 | 15,8 | 415 |
| YSLY-CY-JZ 5×4 Screened – grey | 280 | 17 | 480 |
| YSLY-CY-JZ 4×6 Screened – grey | 318 | 18 | 568 |
| YSLY-CY-JZ 5×6 Screened – grey | 441 | 20,3 | 686 |
| YSLY-CY-JZ 4×10 Screened – grey | 558 | 22,2 | 942 |
| YSLY-CY-JZ 5×10 Screened – grey | 714 | 25,3 | 1110 |
| YSLY-CY-JZ 4×16 Screened – grey | 804 | 25,5 | 1230 |
| YSLY-CY-JZ 5×16 Screened – grey | 1.050 | 28,6 | 1485 |
| YSLY-CY-OZ 2×0.75 Screened – transparent | 46 | 7,5 | 92 |
| YSLY-CY-JZ 3×0.75 Screened – transparent | 58 | 7,9 | 102 |
| YSLY-CY-JZ 4×0.75 Screened – transparent | 64 | 8,5 | 118 |
| YSLY-CY-JZ 5×0.75 Screened – transparent | 78 | 09 | 133 |
| YSLY-CY-JZ 7×0.75 Screened – transparent | 102 | 10,5 | 190 |
| YSLY-CY-JZ 12×0.75 Screened – transparent | 177 | 13 | 304 |
| YSLY-CY-JZ 18×0.75 Screened – transparent | 243 | 14,7 | 374 |
| YSLY-CY-JZ 25×0.75 Screened – transparent | 307 | 17,7 | 504 |
| YSLY-CY-JZ 34×0.75 Screened – transparent | 413 | 18,5 | 822 |
| YSLY-CY-OZ 2×1 Screened – transparent | 56 | 8,2 | 110 |
| YSLY-CY-JZ 3×1 Screened – transparent | 83 | 8,5 | 123 |
| YSLY-CY-JZ 4×1 Screened – transparent | 78 | 9,5 | 148 |
| YSLY-CY-JZ 5×1 Screened – transparent | 89 | 10,2 | 172 |
| YSLY-CY-JZ 7×1 Screened – transparent | 113 | 11,6 | 221 |
| YSLY-CY-JZ 12×1 Screened – transparent | 165 | 14,5 | 367 |
| YSLY-CY-JZ 18×1 Screened – transparent | 286 | 17,4 | 506 |
| YSLY-CY-JZ 25×1 Screened – transparent | 389 | 18,1 | 672 |
| YSLY-CY-OZ 2×1.5 Screened – transparent | 65 | 8,6 | 140 |
| YSLY-CY-JZ 3×1.5 Screened – transparent | 83 | 9,6 | 162 |
| YSLY-CY-JZ 4×1.5 Screened – transparent | 100 | 9,9 | 178 |
| YSLY-CY-JZ 5×1.5 Screened – transparent | 125 | 10,6 | 211 |
| YSLY-CY-JZ 7×1.5 Screened – transparent | 196 | 13,3 | 310 |
| YSLY-CY-JZ 12×1.5 Screened – transparent | 280 | 16 | 454 |
| YSLY-CY-JZ 18×1.5 Screened – transparent | 389 | 19,6 | 628 |
| YSLY-CY-JZ 25×1.5 Screened – transparent | 535 | 22,6 | 794 |
| YSLY-CY-JZ 3×2.5 Screened – transparent | 146 | 11,5 | 214 |
| YSLY-CY-JZ 4×2.5 Screened – transparent | 167 | 12,3 | 270 |
| YSLY-CY-JZ 5×2.5 Screened – transparent | 200 | 14,2 | 342 |
| YSLY-CY-JZ 7×2.5 Screened – transparent | 288 | 14,9 | 426 |
| YSLY-CY-JZ 12×2.5 Screened – transparent | 473 | 19,5 | 710 |
| YSLY-CY-JZ 18×2.5 Screened – transparent | 573 | 23,2 | 990 |
| YSLY-CY-JZ 4×4 Screened – transparent | 237 | 15,8 | 415 |
| YSLY-CY-JZ 5×4 Screened – transparent | 280 | 17 | 480 |
| YSLY-CY-JZ 4×6 Screened – transparent | 318 | 18 | 568 |
| YSLY-CY-JZ 5×6 Screened – transparent | 441 | 20,3 | 686 |
| YSLY-CY-JZ 4×10 Screened – transparent | 558 | 22,2 | 942 |
| YSLY-CY-JZ 5×10 Screened – transparent | 714 | 25,3 | 1110 |
| YSLY-CY-JZ 4×16 Screened – transparent | 804 | 25,5 | 1230 |
| YSLY-CY-JZ 5×16 Screened – transparent | 1.050 | 28,6 | 1485 |
| YSLY-CY-OB 2×0.75 Screened – grey | 46 | 7,5 | 92 |
| YSLY-CY-JB 3×0.75 Screened – grey | 58 | 7,9 | 102 |
| YSLY-CY-JB 4×0.75 Screened – grey | 64 | 8,5 | 118 |
| YSLY-CY-JB 5×0.75 Screened – grey | 78 | 09 | 133 |
| YSLY-CY-JB 7×0.75 Screened – grey | 102 | 10,5 | 190 |
| YSLY-CY-JB 12×0.75 Screened – grey | 177 | 13 | 304 |
| YSLY-CY-JB 18×0.75 Screened – grey | 243 | 14,7 | 374 |
| YSLY-CY-JB 25×0.75 Screened – grey | 307 | 17,7 | 504 |
| YSLY-CY-JB 34×0.75 Screened – grey | 413 | 18,5 | 822 |
| YSLY-CY-JB 42×0.75 Screened – grey | 445 | 20 | 1002 |
| YSLY-CY-JB 50×0.75 Screened – grey | 535 | 24,6 | 1080 |
| YSLY-CY-JB 61×0.75 Screened – grey | 620 | 26,3 | 1190 |
| YSLY-CY-OB 2×1 Screened – grey | 56 | 8,2 | 110 |
| YSLY-CY-JB 3×1 Screened – grey | 83 | 8,5 | 123 |
| YSLY-CY-JB 4×1 Screened – grey | 78 | 9,5 | 148 |
| YSLY-CY-JB 5×1 Screened – grey | 89 | 10,2 | 172 |
| YSLY-CY-JB 7×1 Screened – grey | 113 | 11,6 | 221 |
| YSLY-CY-JB 12×1 Screened – grey | 165 | 14,5 | 367 |
| YSLY-CY-JB 18×1 Screened – grey | 286 | 17,4 | 506 |
| YSLY-CY-JB 25×1 Screened – grey | 389 | 18,1 | 672 |
| YSLY-CY-JB 34×1 Screened – grey | 505 | 20,2 | 890 |
| YSLY-CY-JB 42×1 Screened – grey | 550,7 | 21,5 | 1110 |
| YSLY-CY-JB 50×1 Screened – grey | 662 | 28 | 1300 |
| YSLY-CY-JB 61×1 Screened – grey | 775 | 29,2 | 1362 |
| YSLY-CY-OB 2×1.5 Screened – grey | 65 | 8,6 | 140 |
| YSLY-CY-JB 3×1.5 Screened – grey | 83 | 9,6 | 162 |
| YSLY-CY-JB 4×1.5 Screened – grey | 100 | 9,9 | 178 |
| YSLY-CY-JB 5×1.5 Screened – grey | 125 | 10,6 | 211 |
| YSLY-CY-JB 7×1.5 Screened – grey | 196 | 13,3 | 310 |
| YSLY-CY-JB 12×1.5 Screened – grey | 280 | 16 | 454 |
| YSLY-CY-JB 18×1.5 Screened – grey | 389 | 19,6 | 628 |
| YSLY-CY-JB 25×1.5 Screened – grey | 535 | 22,6 | 794 |
| YSLY-CY-JB 34×1.5 Screened – grey | 666,6 | 25,9 | 1142 |
| YSLY-CY-JB 42×1.5 Screened – grey | 788,8 | 28,9 | 1332 |
| YSLY-CY-JB 50×1.5 Screened – grey | 915 | 30 | 1662 |
| YSLY-CY-JB 61×1.5 Screened – grey | 1196,9 | 33 | 1785 |
| YSLY-CY-JB 3×2.5 Screened – grey | 146 | 11,5 | 214 |
| YSLY-CY-JB 4×2.5 Screened – grey | 167 | 12,3 | 270 |
| YSLY-CY-JB 5×2.5 Screened – grey | 200 | 14,2 | 342 |
| YSLY-CY-JB 7×2.5 Screened – grey | 288 | 14,9 | 426 |
| YSLY-CY-JB 12×2.5 Screened – grey | 473 | 19,5 | 710 |
| YSLY-CY-JB 18×2.5 Screened – grey | 573 | 23,2 | 990 |
| YSLY-CY-JB 4×4 Screened – grey | 237 | 15,8 | 415 |
| YSLY-CY-JB 5×4 Screened – grey | 280 | 17 | 480 |
| YSLY-CY-JB 4×6 Screened – grey | 318 | 18 | 568 |
| YSLY-CY-JB 5×6 Screened – grey | 441 | 20,3 | 686 |
| YSLY-CY-JB 4×10 Screened – grey | 558 | 22,2 | 942 |
| YSLY-CY-JB 5×10 Screened – grey | 714 | 25,3 | 1110 |
| YSLY-CY-JB 4×16 Screened – grey | 804 | 25,5 | 1230 |
| YSLY-CY-JB 5×16 Screened – grey | 1.050 | 28,6 | 1485 |
SPECIAL FEATURES
Core insulation made from
special PVC compound
Sheath colour
Grey (RAL 7001)
Transparent
