Wires & Cords, Flexible PVC cable
H05 / H07VVH6-F
DownloadDatasheet PDF H05 / H07VVH6-F PVC lift cable APPLICATION For use in self-enclosed areas. For conveying and lifting equipment, as... read more
Description

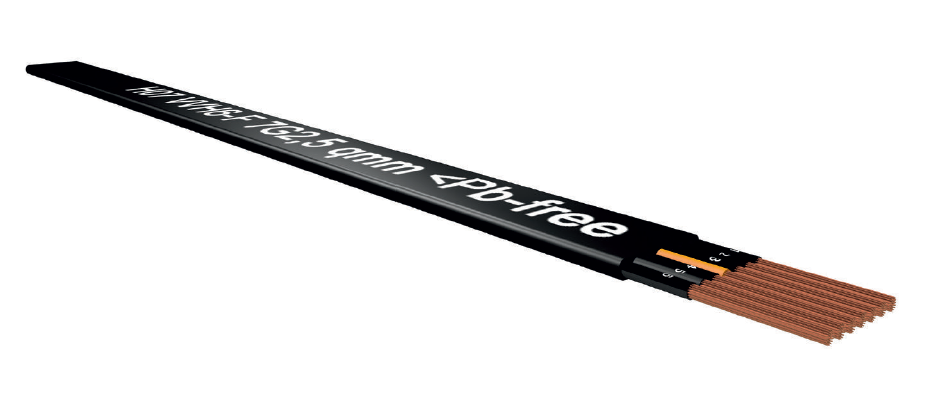

H05 / H07VVH6-F
PVC lift cable
APPLICATION
For use in self-enclosed areas. For conveying and lifting equipment, as well as transport systems. Supply line for moving machine parts. PVC flat cables are mainly used as trailing cables for cranes, ground conveyors and rack feeders. Max. suspension length: 35 m.

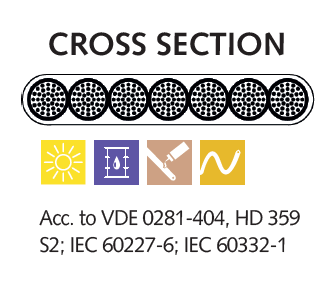

| Structure | |
| Conductor | Copper conductor, bare, flexible according to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5, HD 383 |
| Cores | PVC YI2 |
| Outer sheath | PVC YM2 |
| Technical data | |
| Nominal voltage | 450 V/750 V |
| Test voltage | 2500 V |
| Max. conductor temperature | 70°C |
| Permissible cable sheath temperature |
Fixed installation -40°C to +70°C |
| Permissible cable sheath temperature |
Moving -5°C to +70°C |
| Smoke density | HD 606 and IEC 601034-1, 601034-2 and BS 7622 parts 1+2 |
| Flame retardancy | VDE 0482-332-1-2/IEC 60332-1 |
| UV resistance | Yes |
| Product description | Cu weight | Outer Dimensions (mm) | Min. bending radius |
| H05VVH-6F 4G0.75 | 29 | 4.4 x 12.2 | 95 |
| H05VVH-6F 6G0.75 | 43 | 4.4 x 17.6 | 145 |
| H05VVH-6F 8G0.75 | 58 | 4.4 x 22.5 | 205 |
| H05VVH-6F 12G0.75 | 86 | 4.4 x 32.5 | 265 |
| H05VVH-6F 16G0.75 | 115,2 | 4.4 x 42.9 | 350 |
| H05VVH-6F 18G0.75 | 129,6 | 4.4 x 50.0 | 395 |
| H05VVH-6F 20G0.75 | 144 | 4.4 x 52.6 | 430 |
| H05VVH-6F 24G0.75 | 172,8 | 4.4 x 62.7 | 535 |
| H05VVH-6F 4G1 | 38 | 4.6 x 12.8 | 118 |
| H05VVH-6F 5G1 | 48 | 4.6 x 17.8 | 150 |
| H05VVH-6F 6G1 | 57,6 | 4.6 x 18.8 | 178 |
| H05VVH-6F 12G1 | 116 | 4.6 x 34.8 | 361 |
| H05VVH-6F 16G1 | 153,6 | 4.6 x 45.5 | 564 |
| H05VVH-6F 18G1 | 173 | 4.6 x 45.5 | 618 |
| H05VVH-6F 20G1 | 192 | 4.6 x 56.6 | 652 |
| H05VVH-6F 24G1 | 230,4 | 4.6 x 67.4 | 704 |
| H07VVH-6F 4G1.5 | 58 | 5.5 x 15.6 | 150 |
| H07VVH-6F 5G1.5 | 72 | 5.5 x 23.0 | 180 |
| H07VVH-6F 7G1.5 | 101 | 5.5 x 29.0 | 260 |
| H07VVH-6F 8G1.5 | 115 | 5.5 x 32.0 | 300 |
| H07VVH-6F 10G1.5 | 144 | 5.5 x 36.5 | 360 |
| H07VVH-6F 12G1.5 | 173 | 5.5 x 44.0 | 420 |
| H07VVH-6F 16G1.5 | 231 | 5.5 x 52.8 | 560 |
| H07VVH-6F 18G1.5 | 259 | 5.5 x 62.5 | 620 |
| H07VVH-6F 24G1.5 | 346 | 5.5 x 79.0 | 960 |
| H07VVH-6F 4G2.5 | 96 | 6 x 20.0 | 210 |
| H07VVH-6F 5G2.5 | 120 | 6 x 27.5 | 260 |
| H07VVH-6F 7G2.5 | 168 | 6 x 34.5 | 380 |
| H07VVH-6F 8G2.5 | 192 | 6 x 40.0 | 405 |
| H07VVH-6F 12G2.5 | 288 | 6 x 69.5 | 620 |
| H07VVH-6F 4G4 | 154 | 7 x 21.0 | 300 |
| H07VVH-6F 5G4 | 192 | 7 x 25.0 | 380 |
| H07VVH-6F 7G4 | 269 | 7 x 37.0 | 550 |
| H07VVH-6F 4G6 | 230 | 7 x 25.0 | 390 |
| H07VVH-6F 5G6 | 288 | 7 x 28.0 | 480 |
| H07VVH-6F 7G6 | 403 | 7 x 41.0 | 700 |
| H07VVH-6F 4G10 | 384 | 9 x 29.0 | 620 |
| H07VVH-6F 5G10 | 480 | 9 x 35.0 | 780 |
| H07VVH-6F 4G16 | 614 | 11 x 37.0 | 990 |
| H07VVH-6F 5G16 | 768 | 11 x 43.0 | 1200 |
| H07VVH-6F 4G25 | 960 | 13.5 x 46.0 | 1550 |
| H07VVH-6F 4G35 | 1.344 | 14.8 x 58.0 | 2030 |
| H07VVH-6F 4G50 | 1.920 | 16.5 x 56.0 | 2650 |
SPECIAL FEATURES
Sheath colour
Black
